Air Purification Machines for Hospitals UVC Upper Air

GK Air Purification Machines for Hospitals uvc upper air is engineered to provide very targeted airborne pathogen reduction in high-risk areas. Air Purification Machines for Hospitals uvc upper air is one of our UVC lights. This type of UVC light can be installed easily, wall-mounted, or hanging. Within 2.1 meters in height, UV=RG0. The occupied area is very safe. GK is one of large-scale Air Purification Machines for Hospitals uvc upper manufacturers and suppliers in China. We look forward to becoming your long-term partner in China.


Send Inquiry

Send email to us

Product Description

1.Product Introduction

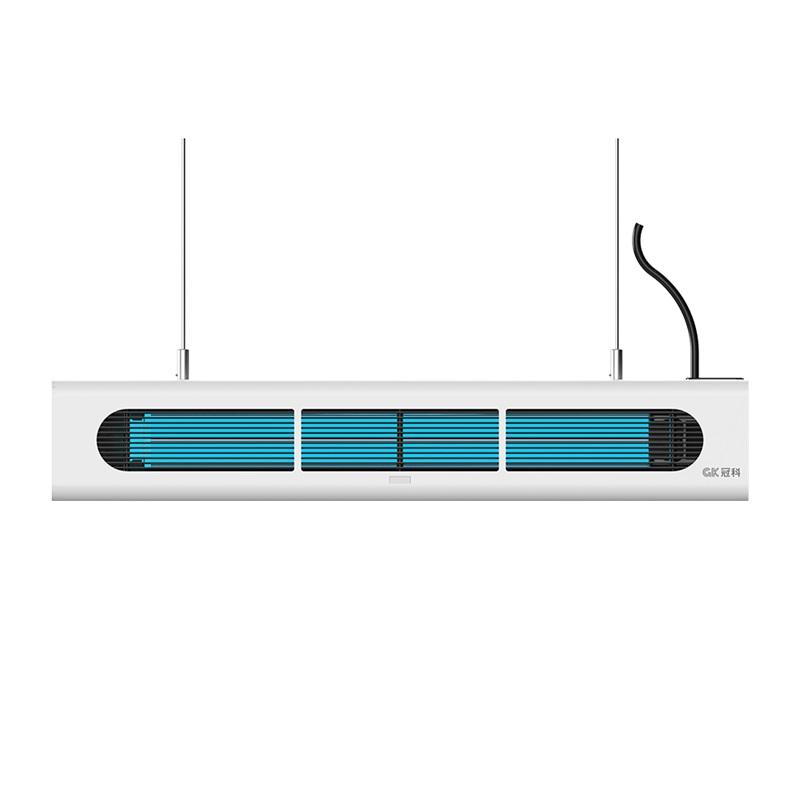

Air Purification Machines for Hospitals uvc upper air
Wallpuri Single side UVC upper air purification device
1. China&US patent design
2. Single side upper air disinfection device;
3. <2.1m UV=RG0 design for occupied space
4. Wave target optical control technology for grille on device
5. Ultrathin and less weight design
6. Safety protection design with PIR sensor
7. Easy to install, wall-mounted or hanging
8. Pull-out design, easy to replace the uvc tube
9. Industrial fans accelerate the disinfection time
10. Competitive price

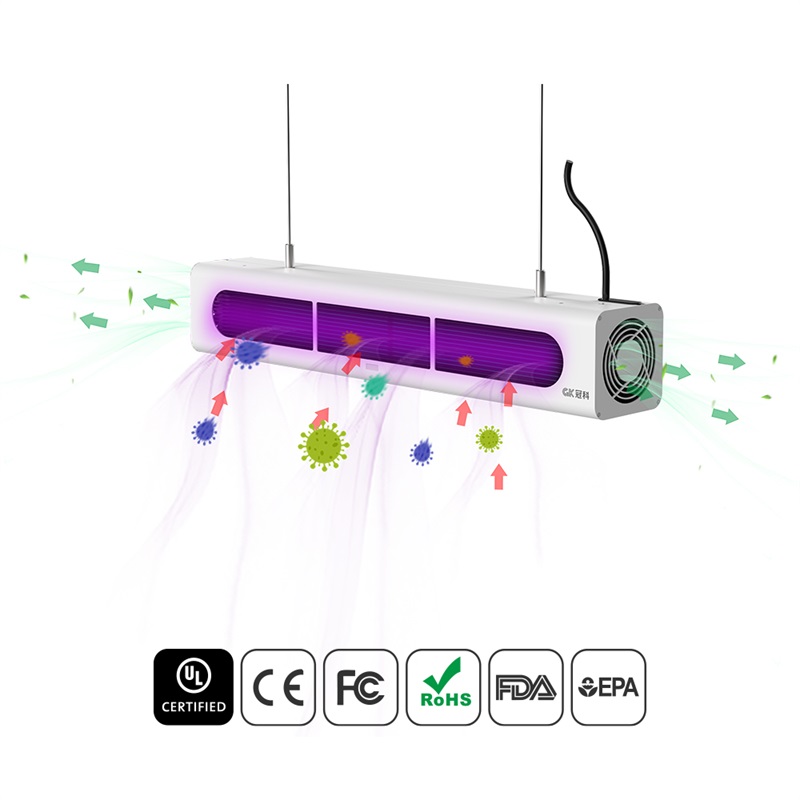

Purification principle:
There is an ultraviolet upper air radiation device inside, which forms a UVC upper layer of the space. The inside fan of the device
causes the indoor air convection effect to remove the fine particles floating in the air. Bacteria and viruses rise to the UV flat radiation layer and use the upper air radiation to purify viruses and bacteria. Most indoor places like Office, Food shops, Hotel, Hospital, School, Bank, Toilet, Etc.

2.Product Specification

Air Purification Machines for Hospitals uvc upper air
Model U33-85W-01
Power 85W
Product size(mm) 804mm*140mm*140mm
Input voltage(V) AC 100-277V
Wave length(nm) 253.7nm
Radiation intensity (1m from the UVC tube)(μW/cm²) 170uw/cm²
Noise at 1m distance (DB) 40DB
Tube type 75W H type quartz UV-C tube
UV Tube life span >8000h
Air volume(CFM) 51.53CFM
Working temperature(℃) -5℃~+40℃
Warranty Whole device:3 years,UVC tube:1 year

3.Product Details

Air Purification Machines for Hospitals uvc upper air
Product features:
(1)Parallel radiation on upper layer, occupied area:
The single-sided 180 degree uvc outlet, UVC ultraviolet radiation will only occur at a height of 2.1m of the installation the recommended installation height is above 2.3 meters, and below 2.1 meters is a safe area, without any UV rays, safe for occupied space.

(2)Industrial fan improves purification efficiency:
Industrial fan design, front air inlet, and side air outlet speed up the purification speed of space air circulation. The experimental data shows that the fan can improve the purification efficiency under the same power.

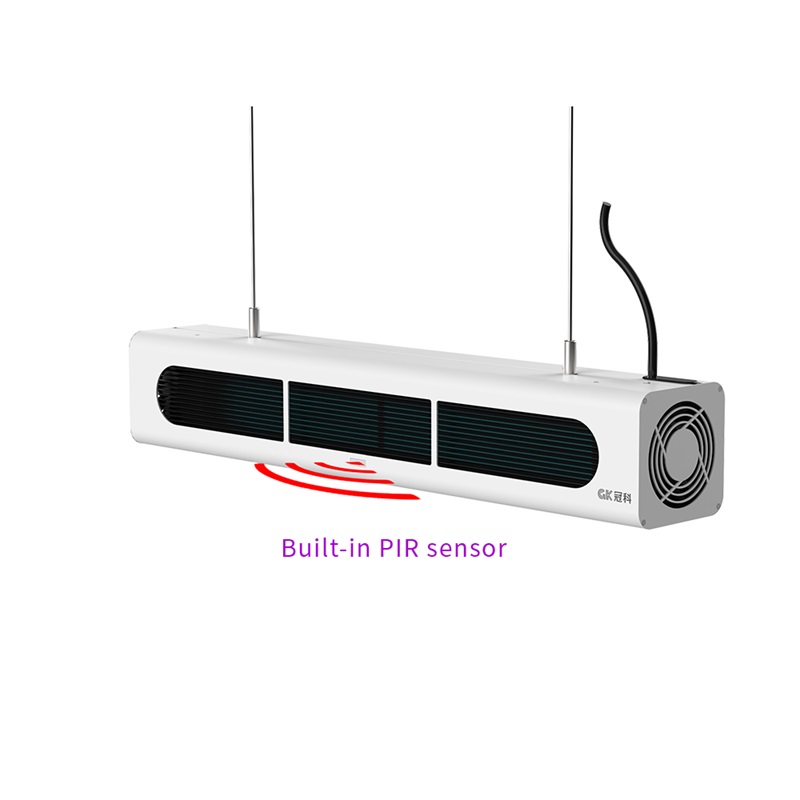

(3)Built-in PIR sensor:
*PIR indicator "blue light" is always on after power on.
*PIR indicator flashes every 1s when the PIR detects people, the corresponding fan, and the UVC lamp stop working.
After detecting no one within 2 minutes, the light and fan will be turned on automatically. If PIR detects people within two minutes after the light is turned off, the 2-minute countdown needs to be recalculated.
When the UVC lamp is turned off or damaged, the PIR indicator "blue light" goes out.
*PIR detection distance≥2m.

(4)Wave type patent targets optical control technology:
To guarantee parallel UVC irradiation in the upper air space for safety, at the same time make the device as small as possible.

(5)Built-in mirror aluminum reflector to improve irradiation efficiency:
The built-in mirror aluminum diffuse reflection design reflects the ultraviolet light on the back to the irradiation area, which greatly improves the radiation intensity of ultraviolet light.

(6)Pull-out design, easy to replace the tube:
After removing the fan screw on one end of the power cord, the lamp and power module can be pulled out as a whole, which is convenient for lamp replacement and maintenance.

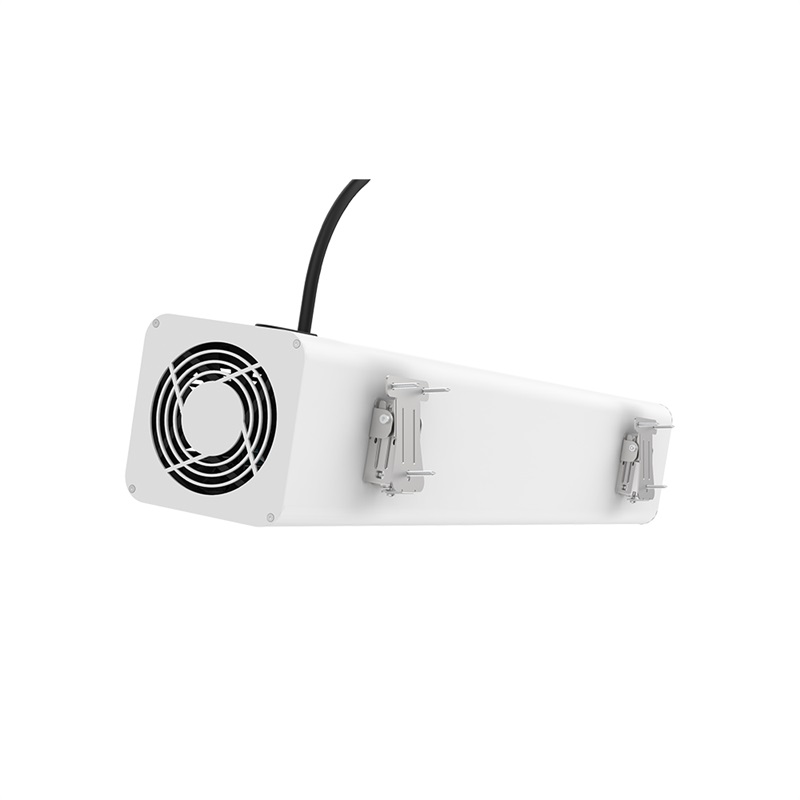

Installation method:
Wall-mounted or ceiling mounted.

4.Shipping and Packing of UVC lights

Outer carton size (mm) (x0.0393=inch): 840*210*200mm
