Upper air uvc disinfection

The upper air uvc disinfection U32 model is the only UVC sterilization equipment in the world, and there is no similar product on the market at present. upper air uvc disinfection U32 model is a new UVC product independently developed by GK Company. It adopts UV-LED core technology, which greatly enhances the sterilization effect. upper air uvc disinfection U32 model is one of all UVC products of GK company, which is not only small but also beautiful and does not take up space. When the upper air uvc disinfection U32 model is working, it does not affect people's normal work and activities, and it is very suitable for various indoor scenes, such as rooms, toilets, classrooms, restaurants, banks, offices, and so on. As one of the largest suppliers and manufacturers in China, GK has factories, biological laboratories, and offices covering an area of 30,000 square meters. All products have been certified by CE, UL, FCC, etc. strong competitive advantage. Hope we can be your long-term partner in China.


Send Inquiry

Send email to us

Product Description

1.Product Introduction
GK is one of the large uv-c disinfection upper room uvgi manufacturers. The Upper Air Series U32 products produced by GK are powerful. upper air uvc disinfection U32 model is the only UVC sterilization equipment in the world, and there is no similar product on the market at present.

1.China&US patent design
2.Upper air, <2.1m UV=RG0

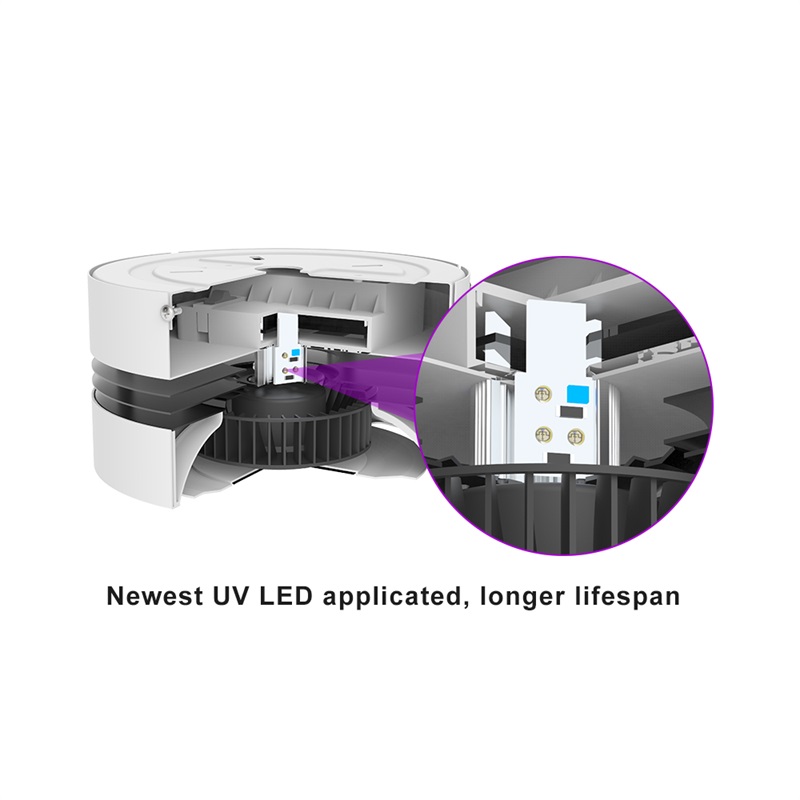

3.Newest UV LED technology, long lifespan 10,000hours
4.Compact size, replace 5" & 6"
5.Targeted optical control technology
6.3 levels fan speed adjustable for different application
7.99% sterilization rate
8.Easy to install
9.Installation method: Ceiling installation, Embedded installation
10. Applicable places: Offices, retail food stores, hotels, schools, banks, toilets, and hospitality for disinfection.

2.Product Specification
upper air uvc disinfection U32 model
Model: U32-10W-01/02
Power: 10W
Input voltage(V): 100-277V
Wave length(nm): 275nm
Radiation Intensity(0.5m from the UVC chip): 25.38uw/cm²
UVC source type: UVC-LED with 30°quartz lens
LED life: lifespan up to 10000 hours UVC, maintenance rete≥70%
Working temperature: -10~40℃
Warranty: 2 years
Quantity: 9pcs/carton

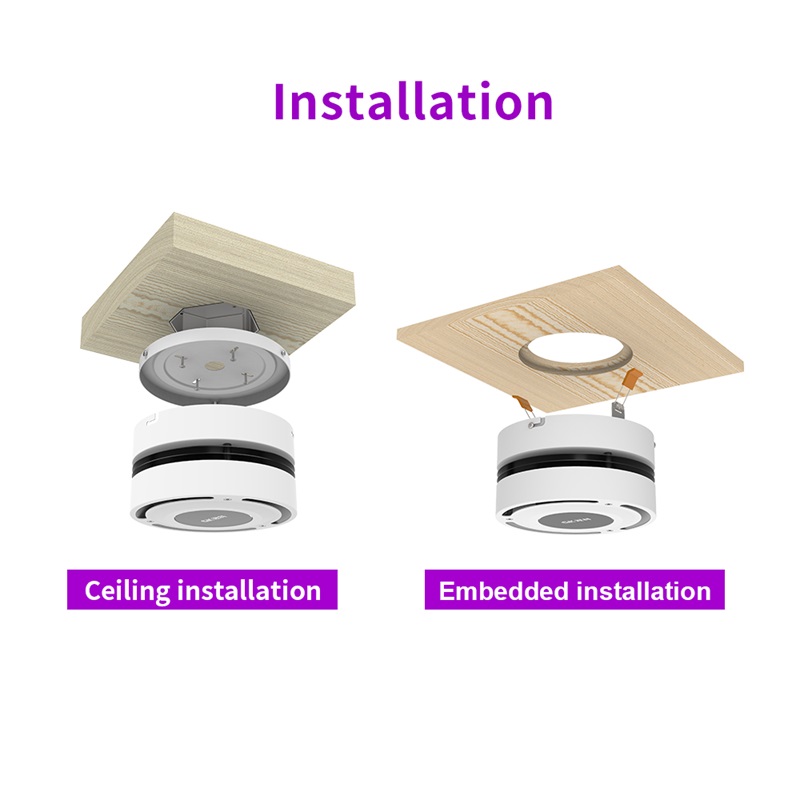

Installation method 1: Ceiling installation
Installation method 2: Embedded installation
Fix the embedded installation piece in the accessory bag on the host with a tool, and adjust the distance between the two installation pieces according to the 5-inch or 6-inch hole in the ceiling.

3.Product Details

upper air uvc disinfection U32 model

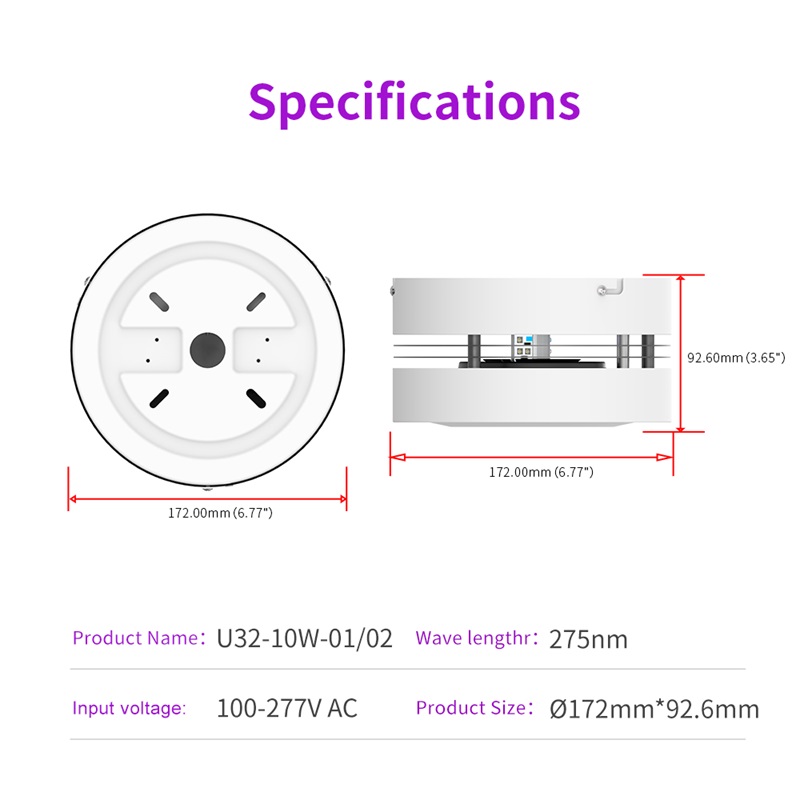

Product size: Ø172mm*92.6mm
Inner box size(mm)(x0.0393=inch): 185*98*185mm
Outer box size (mm) (x0.0393=inch): 575*310*203mm

4.Our product quality and Certificate

Please note our products include upper air uvc disinfection U32 model is with high quality and one year warranty. We are responsible for our products, please no worry about this. And getting 209 patents, including China innovation patent/Apperance patent/Utility model patent.

5.Our company and Showroom

The upper air uvc disinfection U32 model is one of our products, please kindly note our factory was established in 2006, located in Shenzhen China, with over 500 employees and 21,000m² factory plant, GK is one of most professional manufacturers of UVC lights in China. GK has professional labs and powerful R&D team, 12-15 new products come out every year. 130 domestic and overseas patents is a great witness of our innovation. GK products with UL, DLC, FCC, TUV, CE, ROHS, SAA, PSE are mainly exported to North America, Europe, Australia, Japan and South Korea,they have been making benefits for our customers. “Quality first, Customer orient”has always been what we insist, and we have kept innovation for establishing a long-term cooperation with our clients. Trust us, make your wise decision to cooperat with us today, and win a brighter future together !

6.Shipping and Packing of UVC lights
upper air uvc disinfection U32 model


1. Are you a trading company or a manufacturer?
A: Yes, we are a pretty professional Chinese manufacturer.

2. What kind of UVC lights do you have?
A: We concentrate on UVC purification lights, at present we have surface purification lights, air purification lights and UVC safety system. The surface purification lights can combine with UVC safety system to install for hospitals, offices, schools, supermarkets and other public indoor places.

3.How should I choose the UVC lights?
A: Usually ultraviolet light bulb are used for indoor and it's harmful for human's eyes and skins if the UVC lights are direct. The most important thing for  ultraviolet light bulb is safe. Safety UVC purification light means safe design to avoid the direct UVC light hurts humans and animals, at the same time the high UVC efficacy can really purify virus and bacteria in the air.

4. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

5.How long is your delivery time?
A: Usually, the delivery time for samples is 2-3 working days. For regular mass order, the delivery time is around 20-35 working days.If you need to short the delivery time, please send us your order for cast to prepare the raw materials in advance.

6.Will you attend the fair to show your products?
A: Yes, we will attend some professional UVC lights fair and some professional medical device fair.

7.Are you looking for local agency?
A: Yes, anyone would like to be our agency should be qualified with quite company strength and sales amount. About the detailed cooperation, please leave your message on our website and our sales representative will contact you soon.

8.Why GK is better than others?
A: GK is a reliable and experienced manufacturer in lighting with more than 15 years. The company culture and values are generally recognized by peers and customers. All of the products are self-design and produce from the power supply solution design to plastic injections, hardware processing to lights assembly.
Now GK factories with over 21,000 square meter, faster delivery time with 10000pcs production capability per day, the patents are more than 130 for overseas and domestic.Our strong team: 50 sales representative, 60 engineers, 32 Q.C. We always seek “Quality oriented, customer first”.
