uv-c disinfection upper room uvgi

As one of the large uv-c disinfection upper room uvgi manufacturers in China,GK has an independent biological laboratory for UVC products. As one of the large uv-c disinfection upper room uvgi manufacturers, our upper air uvc devices produced by GK is not only small in size and beautiful but also adopts the latest UV LED technology, which has a stronger sterilization effect. The upper air uvc devices While working, people can carry out their normal work activities,so the working environment is very safe, so upper air uvc devices is loved by customers! As one of the large uv-c disinfection upper room uvgi manufacturers, GK has very good prices and technical advantages! If you need our help with related projects of UVC products, want to be our agent, or need us to customize the brand for you, please feel free to contact us. We look forward to being your long-term partner in China!


Send Inquiry

Send email to us

Product Description

1.Product Introduction

GK is one of the large uv-c disinfection upper room uvgi manufacturers. The Upper Air Series U32 products produced by GK are powerful.

1. Shortwave UV radiation peak at 253.7 nm (UV-C).

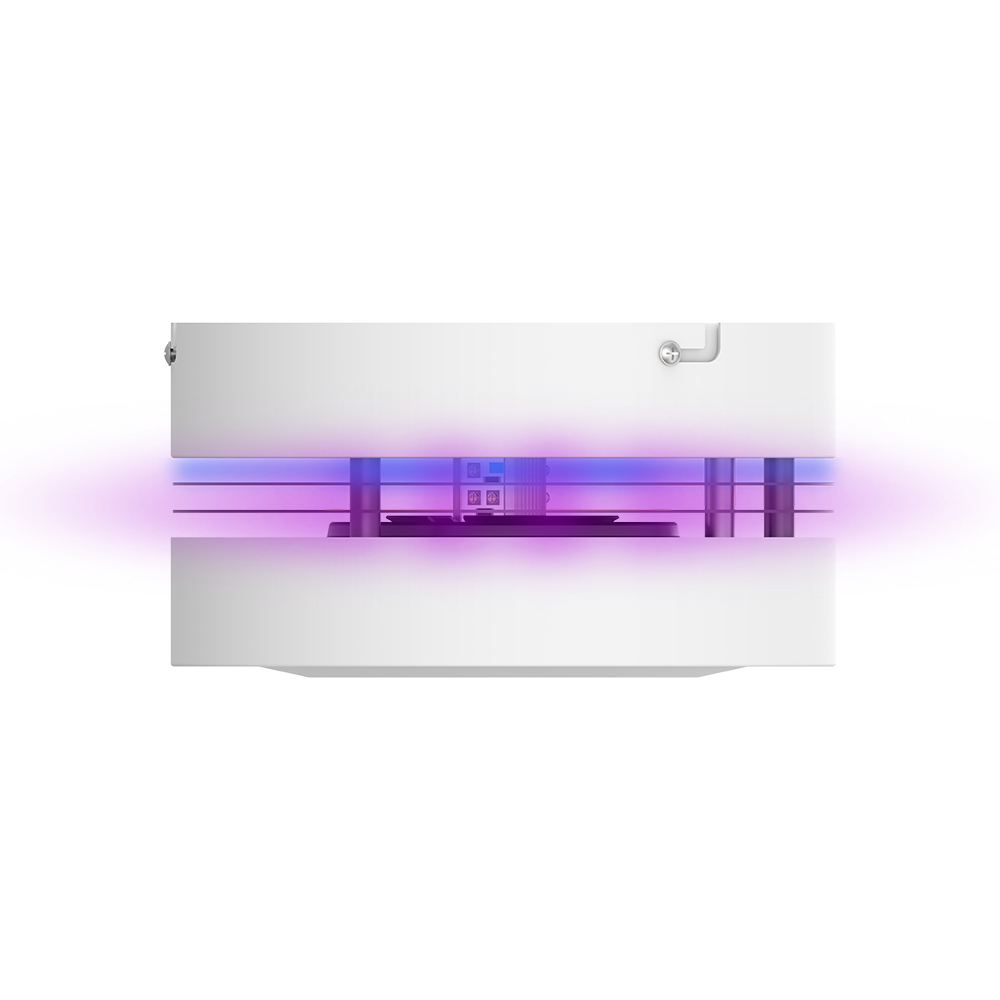

2. The light-emitting design of the circular upper flat layer:
360°uvc outlet, improve the disinfection area, also highly effective for viruses. 2.5m installation height, safe for the occupied area.
3. Fan speed adjustment:
The wind speed can be adjusted according to the actual application scene. The wind speed is divided into 3 gears, each of which is 1st gear, 2nd gear, 3rd gear.

4. Centrifugal fan improves sterilization efficiency:
Centrifugal fan to accelerate local airflow, experimental data show that the fan can improve the sterilization efficiency under the same power.

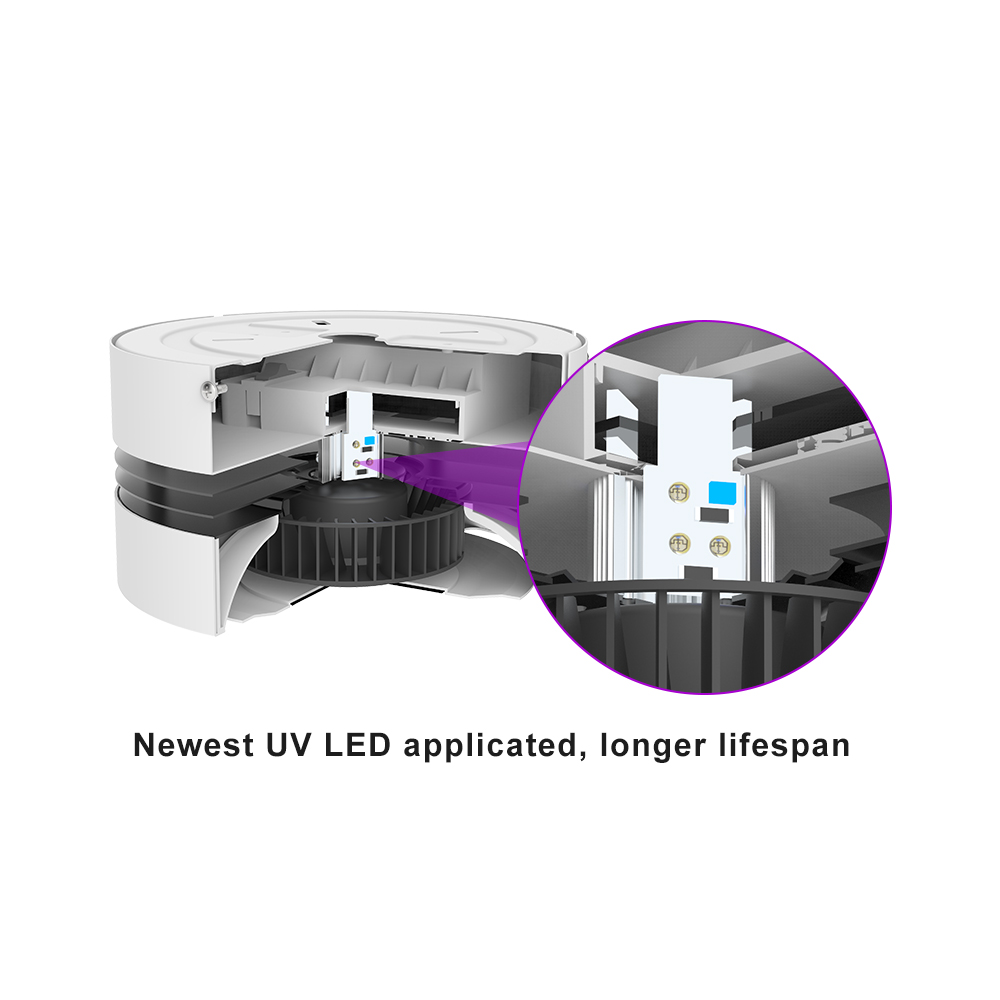

5. LED UV lamp beads:
Built-in 3 sides, with a total 9 pcs led uvc, long lifespan.

6.Installation method: Ceiling installation, Embedded installation

7. Applicable places: Offices, retail food stores, hotels, schools, banks, toilets, and hospitality for disinfection.

2.Product Specification
GK is one of the large uv-c disinfection upper room uvgi manufacturers.
Model: U32-10W-01/02
Power: 10W
Input voltage(V): 100-277V
Wave length(nm): 275nm
Radiation Intensity(0.5m from the UVC chip): 25.38uw/cm²
UVC source type: UVC-LED with 30°quartz lens
LED life: lifespan up to 10000 hours UVC, maintenance rete≥70%
Working temperature: -10~40℃
Warranty: 2 years
Quantity: 9pcs/carton

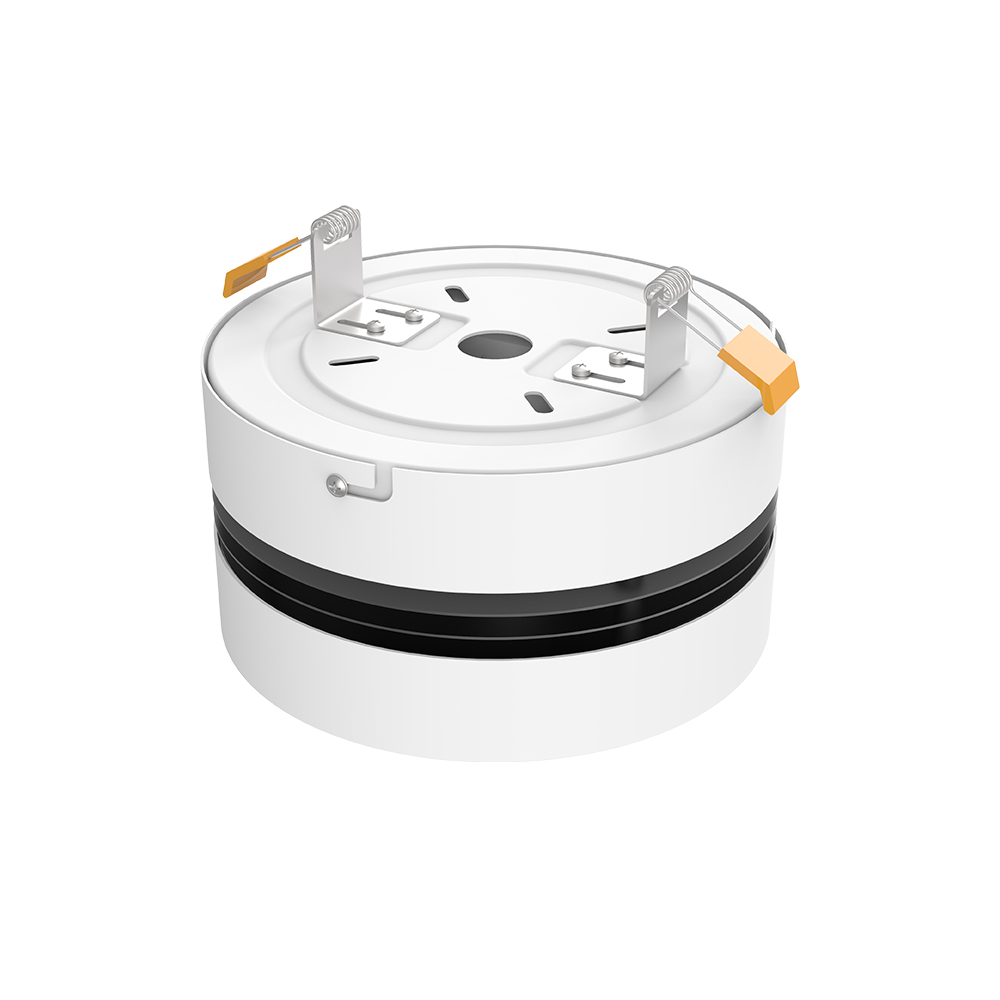

Installation method 1: Ceiling installation
Installation method 2: Embedded installation
Fix the embedded installation piece in the accessory bag on the host with a tool, and adjust the distance between the two installation pieces according to the 5-inch or 6-inch hole in the ceiling.

3.Product Details
GK is one of the large uv-c disinfection upper room uvgi manufacturers.
Product size: Ø172mm*92.6mm
Inner box size(mm)(x0.0393=inch): 185*98*185mm

Outer box size (mm) (x0.0393=inch): 575*310*203m

4.Our product quality and Certificate
GK is one of the large uv-c disinfection upper room uvgi manufacturers.
Please note our products include upper air uvc devices are with high quality and one year warranty. We are responsible for our products, please no worry about this. And getting 130 patents, including China innovation patent/Apperance patent/Utility model patent.

5.Our company and Showroom
GK is one of the large uv-c disinfection upper room uvgi manufacturers.

The upper air uvc devices are one of our products, please kindly note our factory was established in 2006, located in Shenzhen China, with over 500 employees and 21,000m² factory plant, GK is one of most professional manufacturers of UVC lights in China. GK has professional labs and powerful R&D team, 12-15 new products come out every year. 209 domestic and overseas patents is a great witness of our innovation. GK products with UL, DLC, FCC, TUV, CE, ROHS, SAA, PSE are mainly exported to North America, Europe, Australia, Japan and South Korea,they have been making benefits for our customers. “Quality first, Customer orient”has always been what we insist, and we have kept innovation for establishing a long-term cooperation with our clients. Trust us, make your wise decision to cooperat with us today, and win a brighter future together !

6.Shipping and Packing of UVC lights

1. Are you a trading company or a manufacturer?
A: Yes, we are a pretty professional Chinese manufacturer.

2. What kind of UVC lights do you have?
A: We concentrate on UVC purification lights, at present we have surface purification lights, air purification lights and UVC safety system. The surface purification lights can combine with UVC safety system to install for hospitals, offices, schools, supermarkets and other public indoor places.

3.How should I choose the UVC lights?
A: Usually ultraviolet light bulb are used for indoor and it's harmful for human's eyes and skins if the UVC lights are direct. The most important thing for  ultraviolet light bulb is safe. Safety UVC purification light means safe design to avoid the direct UVC light hurts humans and animals, at the same time the high UVC efficacy can really purify virus and bacteria in the air.

4. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

5.How long is your delivery time?
A: Usually, the delivery time for samples is 2-3 working days. For regular mass order, the delivery time is around 20-35 working days.If you need to short the delivery time, please send us your order for cast to prepare the raw materials in advance.

6.Will you attend the fair to show your products?
A: Yes, we will attend some professional UVC lights fair and some professional medical device fair.

7.Are you looking for local agency?
A: Yes, anyone would like to be our agency should be qualified with quite company strength and sales amount. About the detailed cooperation, please leave your message on our website and our sales representative will contact you soon.

8.Why GK is better than others?
A: GK is a reliable and experienced manufacturer in lighting with more than 15 years. The company culture and values are generally recognized by peers and customers. All of the products are self-design and produce from the power supply solution design to plastic injections, hardware processing to lights assembly.
Now GK factories with over 21,000 square meter, faster delivery time with 10000pcs production capability per day, the patents are more than 209 for overseas and domestic.Our strong team: 50 sales representative, 60 engineers, 32 Q.C. We always seek “Quality oriented, customer first”.
