UVC Fixture Cleaner Uvc Machine Upper Air UV

uvc fixture cleaner uvc machine upper air UV is one of all GK UVC equipments and is a newly developed UVC product by GK. The design of uvc fixture cleaner uvc machine upper air UV product has obtained Chinese and American patents. Compared with similar products on the market, uvc fixture cleaner uvc machine upper air UV equipment uses grid wave target light control technology, and the built-in industrial fan can shorten the disinfection time, which not only has a stronger disinfection and sterilization effect but also has a smaller size. Smaller, lighter in weight, and more beautiful in design. Single-sided wind disinfection device, below the installation height of 2.1 meters, UV=RG0, people can normally carry out daily work and activities. This type uvc fixture cleaner uvc machine upper air UV has a safety protection design with a PIR sensor. Even if the operation is above 2.1 meters, the sensor will sense and stop disinfection. It is very easy to install and can be wall-mounted or hung. It is the best choice for commercial, industrial, civil, family, and other indoor areas.


Send Inquiry

Send email to us

Product Description

1. Product Introduction

uvc fixture cleaner uvc machine upper air UV
Wallpuri Single side UVC upper air purification device
1. China&US patent design
2.Single side upper air disinfection device;
3. <2.1m UV=RG0 design for occupied space
4. Wave target optical control technology for grille on device
5. Ultrathin and less weight design
6. Safety protection design with PIR sensor
7. Easy to install, wall-mounted or hanging
8. Pull-out design, easy to replace the uvc tube
9. Industrial fans accelerate the disinfection time
10. Competitive price
11.Wall-mounted or ceiling mounted
12.Most indoor places like Office, Food shops, Hotel, Hospital, School, Bank, Toilet, Etc

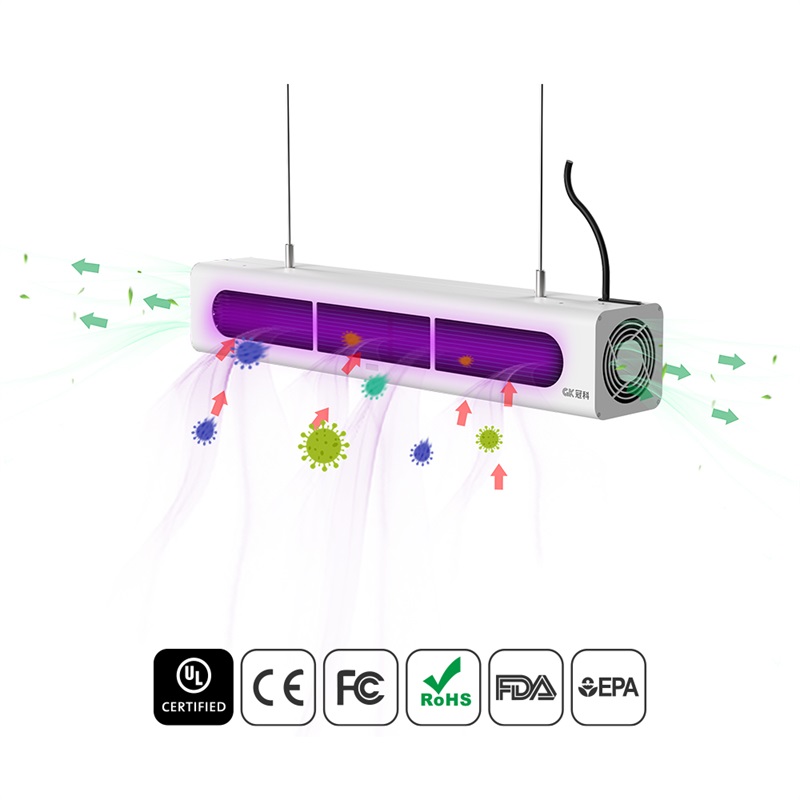

Purification principle:
There is an ultraviolet upper air radiation device inside, which forms a UVC upper layer of the space. The inside fan of the device causes the indoor air convection effect to remove the fine particles floating in the air. Bacteria and viruses rise to the UV flat radiation layer and use the upper air radiation to purify viruses and bacteria.

2. Product Specification

uvc fixture cleaner uvc machine upper air UV
Model: U33-85W-01
Power: 85W
Product size(mm): 804mm*140mm*140mm
Input voltage(V): AC 100-277V
Wave length(nm): 253.7nm
Radiation intensity (1m from the UVC tube) (μW/cm²: 170uw/cm²
Noise at 1m distance (DB): 40DB
Tube type: 75W H type quartz UV-C tube
UV Tube life span: >8000h
Air volume(CFM): 51.53CFM
Working temperature(℃): -5℃~+40℃
Warranty: Whole device:3 years,UVC tube:1 year

3. Product Details

uvc fixture cleaner uvc machine upper air UV

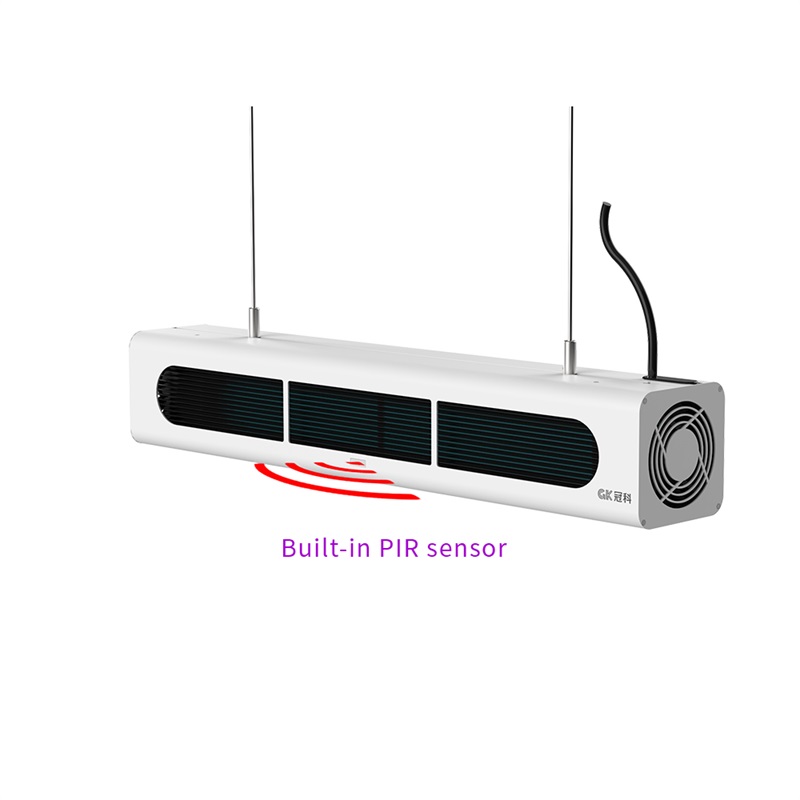

(1)Parallel radiation on the upper layer, occupied area: In the single-sided 180-degree uvc outlet, UVC ultraviolet radiation will only occur at a height of 2.1m of installation the recommended installation height is above 2.3 meters, and below 2.1 meters is a safe area, without any UV rays, safe for occupied space. (2)Industrial fan improves purification efficiency: Industrial fan design, front air inlet, and side air outlet speed up the purification speed of space air circulation. The experimental data shows that the fan can improve the purification efficiency under the same power. (3)Built-in PIR sensor: *PIR indicator "blue light" is always on after power on. *PIR indicator flashes every 1s when the PIR detects people, the corresponding fan, and the UVC lamp stop working. After detecting no one within 2 minutes, the light and fan will be turned on automatically. If PIR detects people within two minutes after the light is turned off, the 2-minute countdown needs to be recalculated. When the UVC lamp is turned off or damaged, the PIR indicator "blue light" goes out. *PIR detection distance≥2m. (4)Wave type patent targets optical control technology: To guarantee parallel UVC irradiation in the upper air space for safety, at the same time make the device as small as possible. (5)Built-in mirror aluminum reflector to improve irradiation efficiency: The built-in mirror aluminum diffuse reflection design reflects the ultraviolet light on the back to the irradiation area, which greatly improves the radiation intensity of ultraviolet light. (6)Pull-out design, easy to replace the tube: After removing the fan screw on one end of the power cord, the lamp and power module can be pulled out as a whole, which is convenient for lamp replacement and maintenance.

4. Our product quality and Certificate

Please note our products include uvc fixture cleaner uvc machine upper air UV are with high quality and one year warranty. We are responsible for our products, please no worry about this. And getting 130 patents, including China innovation patent/Apperance patent/Utility model patent.

5. Our company and Showroom

The uvc fixture cleaner uvc machine upper air UV are one of our products, please kindly note our factory was established in 2006, located in Shenzhen China, with over 500 employees and 21,000m² factory plant, GK is one of most professional manufacturers of UVC lights in China. GK has professional labs and powerful R&D team, 12-15 new products come out every year. 130 domestic and overseas patents is a great witness of our innovation. GK products with UL, DLC, FCC, TUV, CE, ROHS, SAA, PSE are mainly exported to North America, Europe, Australia, Japan and South Korea,they have been making benefits for our customers. “Quality first, Customer orient”has always been what we insist, and we have kept innovation for establishing a long-term cooperation with our clients. Trust us, make your wise decision to cooperat with us today, and win a brighter future together !

6. Shipping and Packing of UVC lights

Outer carton size (mm) (x0.0393=inch): 840*210*200mm

7. FAQ

1. Are you a trading company or a manufacturer?
A: Yes, we are a pretty professional Chinese manufacturer.

2. What kind of UVC lights do you have?
A: We concentrate on UVC purification lights, at present we have surface purification lights, air purification lights and UVC safety system. The surface purification lights can combine with UVC safety system to install for hospitals, offices, schools, supermarkets and other public indoor places.

3. Can I have a sample order?
Yes, welcome sample order to test and check quality.

4. What is your terms of payment?
Usually, we accept T/T, L/C at sight. For regular orders, Terms of payment is 30% deposit, the balance paid before shipment.

5.How long is your delivery time?
A: Usually, the delivery time for samples is 2-3 working days. For regular mass order, the delivery time is around 20-35 working days.If you need to short the delivery time, please send us your order for cast to prepare the raw materials in advance.

6.Will you attend the fair to show your products?
A: Yes, we will attend some professional UVC lights fair and some professional medical device fair.

7.Are you looking for local agency?
A: Yes, anyone would like to be our agency should be qualified with quite company strength and sales amount. About the detailed cooperation, please leave your message on our website and our sales representative will contact you soon.

8.Why GK is better than others?
A: GK is a reliable and experienced manufacturer in lighting with more than 15 years. The company culture and values are generally recognized by peers and customers. All of the products are self-design and produce from the power supply solution design to plastic injections, hardware processing to lights assembly.
Now GK factories with over 21,000 square meter, faster delivery time with 10000pcs production capability per day, the patents are more than 130 for overseas and domestic.Our strong team: 50 sales representative, 60 engineers, 32 Q.C. We always seek “Quality oriented, customer first”.
