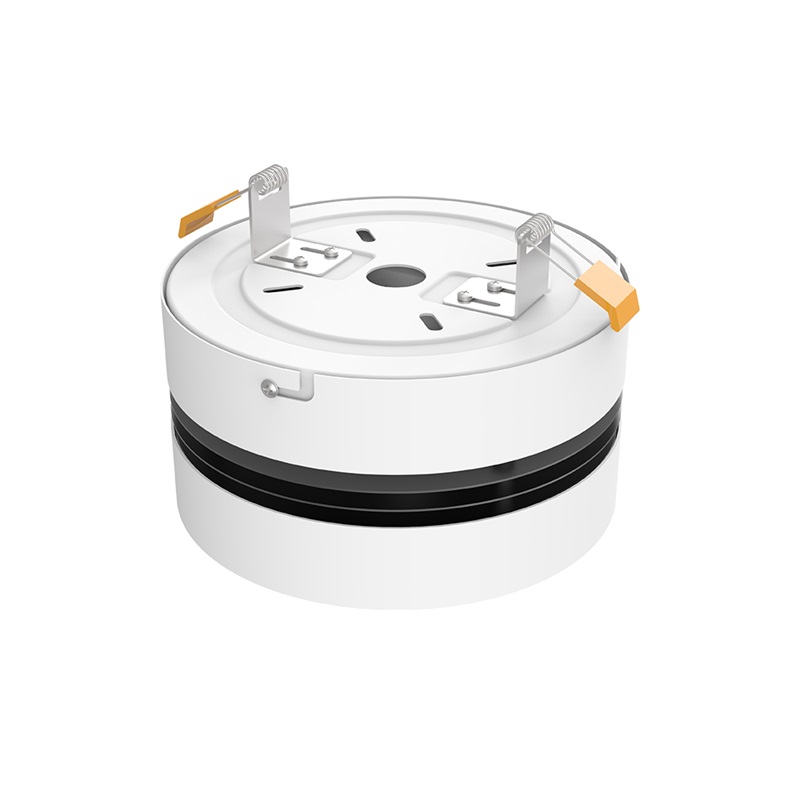

U32 Round Upper-Air Disinfection System

Product Introduction

The GK-U32 High Bay Disinfection Light utilizes a germicidal spectrum UVC LED light and has been effectively tested against a wide spectrum of viral and bacterial pathogens. The device is UL, CE, and ROHS approved and meets USEPA safety standards for disinfecting products.

Features:
1.Shortwave UV radiation peak at 275nm (UV-C).
2.Wall mounted installation.

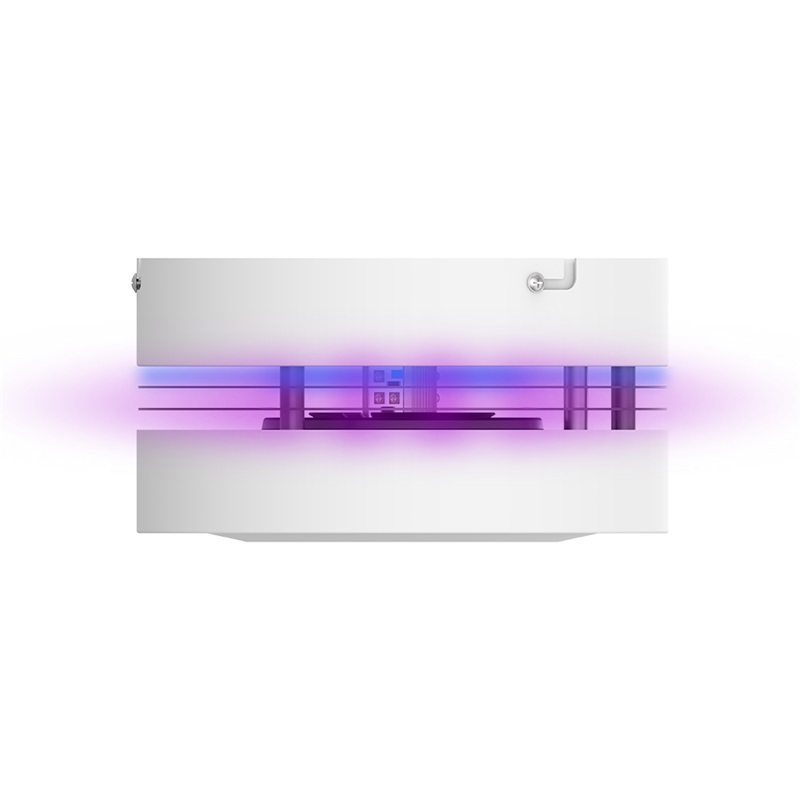

3.The light-emitting design of the circular upper flat layer：
360°uvc outlet，improve the disinfection area,also high effective for virus. 2.5m installation height,safe for occupied area.
4.Fan speed adjustment：
The wind speed can be adjusted according to the actual application scene . The wind speed is divided into 3 gears, each of which is 1st gear , 2nd gear, 3rd gear.
5.Centrifugal fan improves sterilization efficiency:
Centrifugal fan to accelerate local air flow, experimental data show that the fan can improve the sterilization efficiency under the same power.

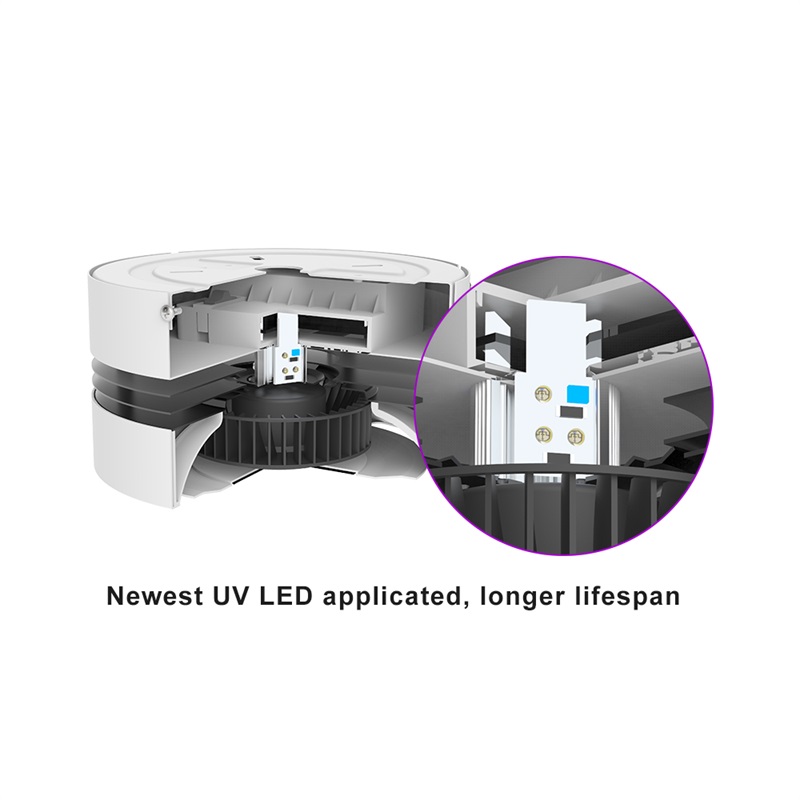

6.LED UV lamp beads：
Built-in 3 sides, with a total 9 pcs led uvc, long lifespan
Installation method 1: Ceiling installation
Installation method 2: Embedded installation
7.Applicable places: Offices, retail food stores, hotels, schools, banks, toilets and hospitality for disinfection.

These energy-efficient LED lights can replace any standard 6' ceiling light fixture offering 3 lighting powers and safe UV air sanitization.

According to the lighting application requirements of the actual environment, you can choose to match the conventional acrylic covers in the market to increase the light distribution and reduce glare.

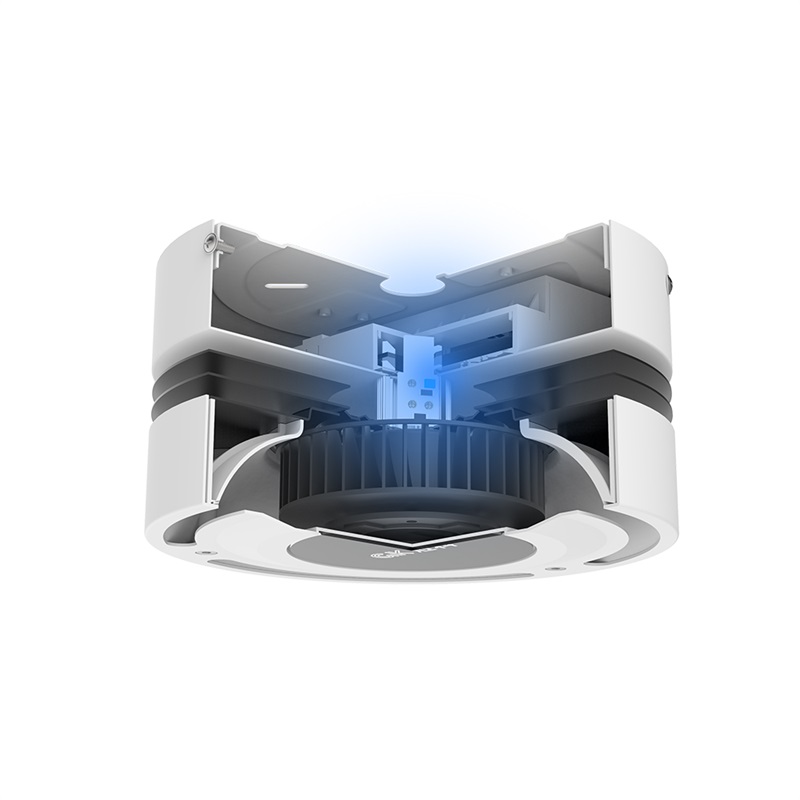

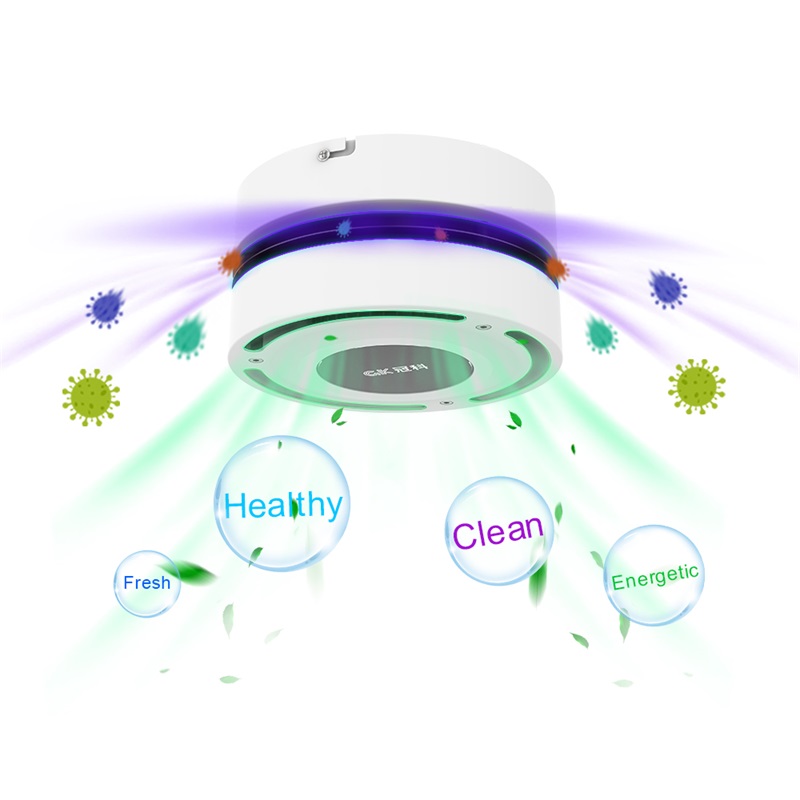

Through the centrifugal force of the fan, the dirty air with pathogens, mold, and other airborne germs are drawn from the surrounding room into the light fixture.  When the air passes through the relatively closed disinfection chamber, it is purified by the  UVC  light and then discharged from the lower part of the light body to complete a cycle of disinfection.

The light is equipped with a UV LED  energy-concentrating flat layer device.  The light is hanging-installed on the ceiling. The indoor air convection effect caused by the fan inside the light is used to quickly draw the bacteria and viruses floating in the air into the UV  light, achieve the rapid disinfection of bacteria and viruses, and achieve the purpose of Man-machine coexistence.

UVC can destroy the DNA and  RNA of microorganisms, causing them to lose their ability to reproduce and then die, achieving the effect of disinfection! (Bacterial  structure: DNA + cell membrane;  virus structure: RNA + protein  shell)

Instructions and Specification
